    Non - Toxic Ppr Pipe Accessories Casting Ppr Plastic Pipe For Rainwater Utilization Systems

    Ask Lasest Price
    Brand Name : DSTHERM
    Model Number : 20-160mm
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 20days /20 feet container , 35days/40 HQ
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Non - Toxic Ppr Pipe Accessories Casting Ppr Plastic Pipe For Rainwater Utilization Systems

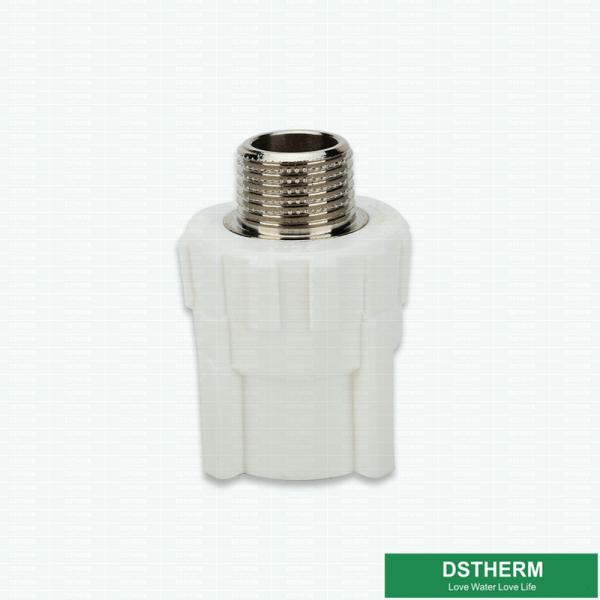

    DSTHERM White PPR Pipe Fittings Male Threaded Coupling Size 20-160mm DIN8007/8078


    Material: PPR HYOSUNG R200P from Korea , Borealis A140E
    Technics: Injection
    Place of Origin: Shanghai, China
    Connection: Welding
    Shape: Equal,
    Name: PPR Female threaded Coupling
    Color: White and other color on request
    Surface: Smooth
    Pressure Rating: 2.0MPa
    Size:20x1/2–90x3
    OEM Available
    Material: PPR HYOSUNG R200P from Korea,58-3A cooper for brass insert
    Standard: ISO 15874: 2003, DIN8077-8078
    Production temperature: -40 - +95°C
    Certification: ISO9001


    1. High Temperature Resistance: the maximum sustained working temperature is up to 70 °C,the maximum transient temperature is up to 95°C
    2. Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
    3. Corrosion Resistant: resist chemical matters or electron chemical corrosion
    4. Lower Installation Costs: light weight and ease of installation can reduce installation costs
    5. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume
    6. Long Life: more than 50 years under normal conditions more than 50 years under normal conditions
    7. Recycled and Environment-friendly

    Feature
    1. Sanitary & non-toxic;
    2. Corrosion resistant & not scaling;
    3. High temperature resistant & high pressure resistant;
    4. Heat preservation & energy efficient;
    5. Light weight;
    6. Elegant appearance;
    7. Convenient & reliable installation;
    8. Long service life: over 50 years


    Application Field
    Potable water pipe networks for cold and warm water installations of residential
    buildings, hospitals, hotels, schools, office buildings and shipbuilding
    Pipe networks for rainwater utilization systems
    Pipe networks for compressed air plants
    Pipe networks for swimming pool facilities
    Pipe networks for solar plants
    Pipe networks in agriculture and horticulture
    Heating pipes for residential housing
    Pipe networks for industry,

    For Water Installations


    Temperature
    Service lifeSafety-factor=1.5
    SDR 11SDR 9SDR7.4SDR 6
    Nominal Pressere
    PN10PN12.5PN16PN20
    Permissible Working Pressure
    20℃115.018.923.830.0
    1013.717.321.727.2
    5012.915.920.425.7
    40℃110.813.617.121.2
    109.212.416.020.2
    509.211.514.518.8

    50℃
    19.210.814.518.3
    108.210.513.116.5
    507.79.812.215.4
    60℃1//12.215.4
    10//11.013.8
    50//10.112.7
    75℃1//9.912.3
    10//7.59.3
    25//6.17.5

    SDR=Standard Dimension Ratio(diameter/wall thickness)
    SDR=d/s(S=Pope series index from ISO 4065)


    Our advantages

    1). 15 Years' Experience in production

    2). accept OEM Order

    3). ISO9001 approved

    4). We use All New raw material in products

    5). Sufficient products with complete specifications for your choice
